Model G12T Series Stainless Gas Regulator

Model G12T series gas regulator has been specifically designed for use with non-corrosive gases. And a Two-stage diaphragm is designed with it  in order to make the output pressure more stable.

APPLICABILITY
Laboratory
Analytic instrument
General industrial gas

SPECIFICATIONS
Maximum output pressure：3000 psig
Range of output pressure：0 to 15/24/35/60/90/150 psig
Operating temperature：-10 to +60°C
Outlet connection：1/4"NPTF



DESIGN FEATURE
Designed with the structure of dipole-stage decompression to make the output pressure more stable and accurate.
Install the stainless filter in the inlet.
Accuracy of Pressure guage：1.6KL.
【NOTE】1、The operating pressure should be less than the 60% of the max range of manometer.
2、1MPa=10bar=9.87atm=145.03psi=10.2kg/cm2 =7500mmHg

MATERIAL OF CONSTRUCTION
Body、STEM、Eat：Hpb59-1 (Electroplate)
Seals：PU/EPDM
Diaphragm：NBR/EPDM

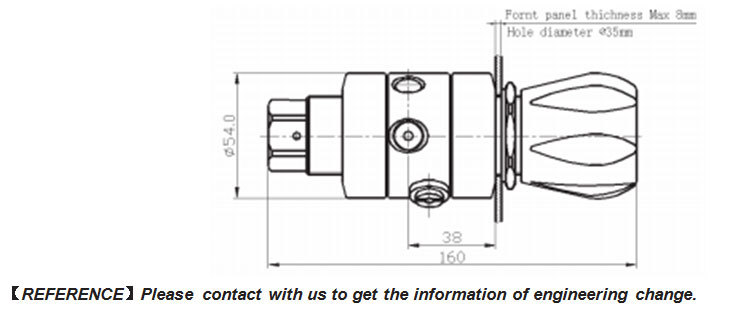

DIMENSIONS

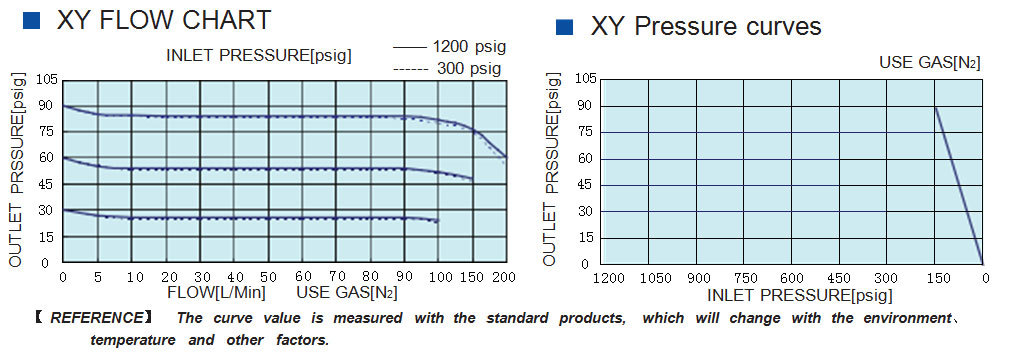

FLOW CHART



ORDERING INFORMATION

I PORTS
A=2 PORTS
B=4 PORTS








II Body materials
1=HPb59-1 (Electroplate)











III Max inlet pressure
A=60 psig
B=150 psig
C=350 psig
D=600 psig
E=1500 psig
F=2400 psig
G=3500 psig
N= Special pressure


V Pressure gauge
1=YES
2=NO
3= Electro connecting pressure gauge
4 = Vacuumatic pressure gauge
5=Pressure sensor
6=Other


IV Outlet pressure Range
A=0 to 15 psig
B=0 to 24 psig
C=0 to 35 psig
D=0 to 60 psig
E=0 to 90 psig
F=0 to 150 psig
G=0 to 240 psig



VI Inlet connections
A=1/4"NPTF
B=G5/8R
C=W218-14R
D=W21.8-14L
E=G1/2R
F=CGA Series
G=Other




VII Outlet connections
A=1/4"NPTF
B=06 Hose fitting
C=ø8 Hose fitting
D=03 OD
E=06 OD
F=1/8" OD
G=1/4" OD
H=3/8" OD
I=Other

Ⅷ Mounting type
A=NO
B=Neck mounting
C=Back mounting
D=Other
