APPLICABILITY
Laboratory
Analytic instrument
General industrial gas

SPECIFICATIONS
Maximum output pressure：3000 psig
Range of output pressure：0 to 15/24/35/60/90/150/240 psig
Operating temperature：-10 to +60°C
Outlet connection：1/4"NPTF

DESIGN FEATURE
Single stage pressure regulator.
Install the stainless filter in the inlet.
Accuracy of Pressure guage：1.6KL.
【NOTE】 1、The operating pressure should be less than the 60% of the max range of manometer.
2、1MPa=10bar=9.87atm=145.03psi=10.2kg/cm2 =7500mmHg.

MATERIAL OF CONSTRUCTION
Body、STEM、Eat：Hpb59-1  (Electroplate)
Seals：PU/EPDM
Diaphragm：NBR/EPDM

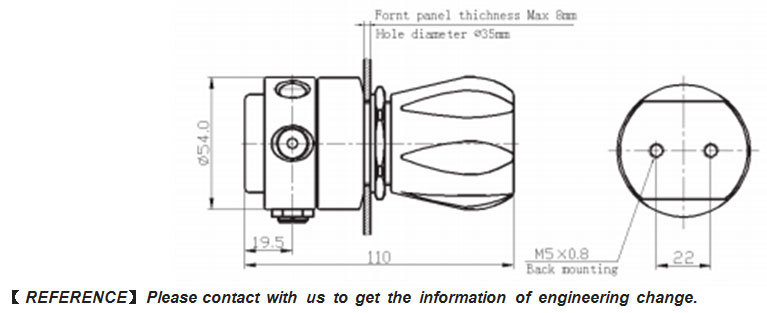

DIMENSIONS

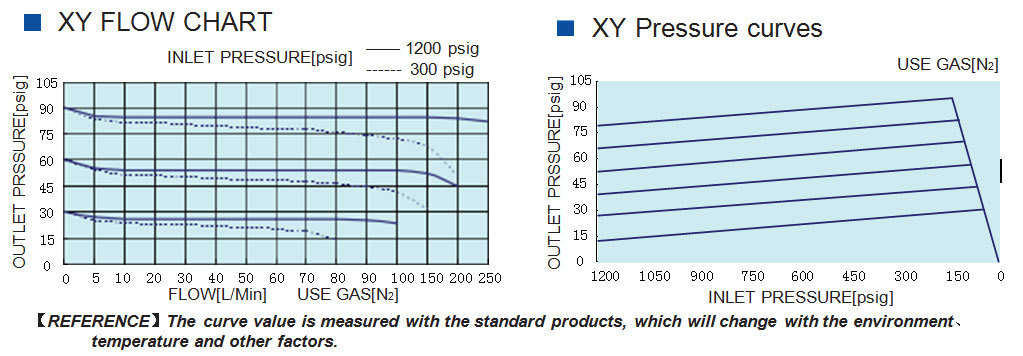

FLOW CHART

ORDERING INFORMATION

I PORTS
A=2 PORTS
B=3 PORTS
C=4 POTRS







ⅡBody materials
1=HPb59-1 (Electroplate)


Ⅲ Max inlet pressure
A=60 psig
B=150 psig
C=350 psig
D=600 psig
E=1500 psig
F=2400 psig
G=3500 psig
N=Special pressure


V Pressure gauge
1=YES
2=NO
3=Electro connecting pressure gauge
4=Vacuumatic pressure gauge
5=Pressure sensor
6=Other


IV Outlet pressure Range
A=0 to  15 psig
B=0 to 24 psig
C=0 to 35 psig
D=0 to 60 psig
E=0 to 90 psig
F=0 to  150 psig
G=0 to 240 psig

VI Inlet connections
A=1/4"NPTF
B=G5/8R
C=W21.8-14R
D=W21.8-14L
E=G1/2R
F=CGA Series
G=Other



VII Outlet connections
A=1/4"NPTF
B=ø6 Hose fitting
C=ø8 Hose fitting
D=ø3 OD
E=ø6 OD
F=1/8" OD
G=1/4" OD
H=3/8" OD
I=Other

Ⅷ Mounting type
A=NO
B=Neck mounting
C=Back mounting
D=Other
