Model C03 Series Stainless Gas Regulator

Low pressure single stage pressure regulator，Suited For high purity gas standards gas,General corrosive gas etc.

Typical Applications
Laboratory
Gas Chromatograph
Petroleum chemistry
Power Plant Equip
Test equipment
Gas pipeline engineering projects

Technical Data
Max inlet pressure：300Psi
Outlet Pressure range：0-15Psi/24Psi/35Psi/60Psi/90Psi/150Psi
Working temperature：-10~+70°C(-30~+160°F)
Boby ports：1/4"NPTF
Leak rate：2*10-8 atm cc/sec He

Product Features
Single stage pressure regulator
Bellow and No perforation diaphragm type Improves product leak rate and adjustment of pressure sensitivity
Small dead volume, easy sweep
Super-pure water washing for parts
Filter mesh inside
Pressure guage for 1.6KL
【Note】1、The operating pressure should be less than the 60% of the max range of manometer.
2、1MPa=10bar=9.87atm=145.03psi=10.2kg/cm2=7500mmHg

Parts Materials
Body\Stem\Lifting seat：SUS316L
Seat ring：PTFE/PCTFE/PEEK
Diaphragm：SUS316L/Hc-22

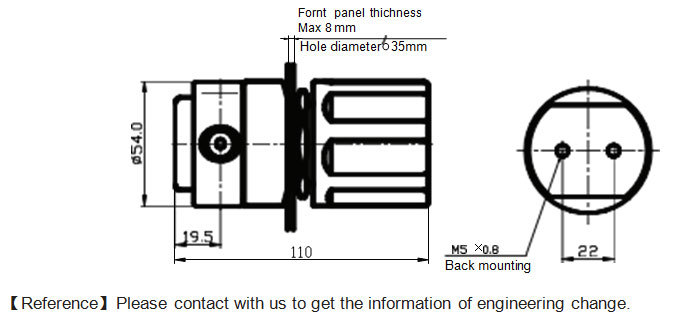

DIMENSIONS

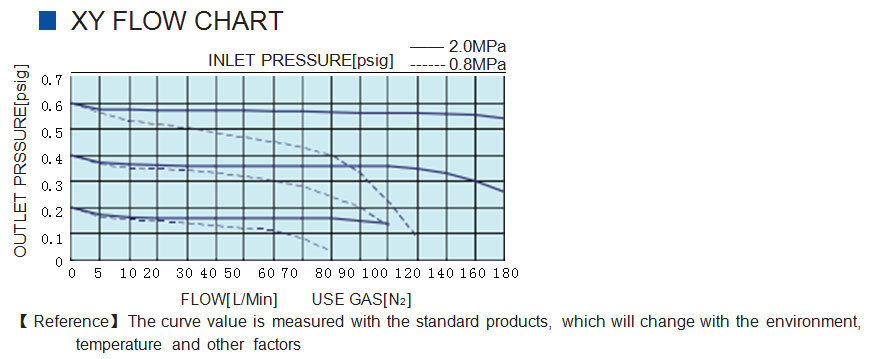

FLOW CHART



ORDERING INFORMATION

I PORTS
A=2 PORTS
B=3 PORTS
C=4 POTRS







ⅡBody materials
1=SUS316L
2=SUS304
3=HPb59-1 (Electroplate)






Ⅲ Max inlet pressure
A=35 psi
B=60 psi
C=90 psi
D=150 psi
F=240 psi
G=300 psi
N=Special pressure




V Pressure gauge
1=YES
2=NO
3=Electro connecting pressure gauge
4=Vacuumatic pressure gauge
5=Pressure sensor
6=Other


IV Outlet pressure Range
A=0 to  15 psig
B=0 to 24 psig
C=0 to 35 psig
D=0 to 60 psig
E=0 to 90 psig
F=0 to  150 psig





VI Inlet connections
A=1/4"NPTF
B=G5/8R
C=W21.8-14R
D=W21.8-14L
E=G1/2R
F=CGA Series
G=Other



VII Outlet connections
A=1/4"NPTF
B=ø6 Hose fitting
C=ø8 Hose fitting
D=ø3 OD
E=ø6 OD
F=1/8" OD
G=1/4" OD
H=3/8" OD
I=Other

Ⅷ Mounting type
A=NO
B=Neck mounting
C=Back mounting
D=Other
