Model C01 Series Stainless Gas Regulator

Model C01 Series Stainless Gas regulator has been specifically designed for use with high purity gases, general corrosive gases and standard gases. And single-stage stainless diaphragm is designed with it.

APPLICABILITY
Laboratory
Gas Chromatograph
Petroleum chemistry
Power Plant Equip
Test equipment
Gas pipeline engineering projects

SPECIFICATION
Maximum inlet pressure：3000 psig
Range of output pressure：0 to 15/24/35/60/90/150/240 psig
Operating temperature ：-10 to +70°C
Outlet connection：1/4"NPTF
Leakage rate：2*10-8 atm cc/sec He

DESIGN FEATURE
Single stage pressure regulator.
Low leakage Rate and regulation sensitivity with the design of  corrugated
stainless diaphragm without holes.
Easy to sweep,Small dead volume.
Cleaning with ultrapure water.
Install the stainless filter in the inlet.
Accuracy of Pressure guage :1.6KL.
【NOTE】1、The operating pressure should be less than the 60% of the max range of manometer.
2、1MPa=10bar=9.87atm=145.03psi=10.2kg/cm2 =7500mmHg

MATERIAL OF CONSTRUCTION
Body、STEM、Eat：SUS316L
Seals：PTFE/PCTFE/PEEK
Diaphragm：SUS316L/Hc-22

DIMENSIONS

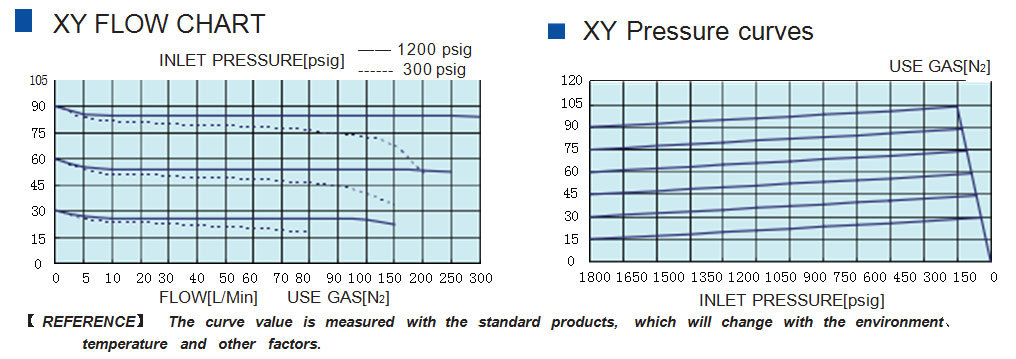

FLOW CHART



ORDERING INFORMATION

I PORTS
A=2 PORTS
B=3 PORTS
C=4 POTRS







ⅡBody materials
1=SUS316L
2=SUS304
3=HPb59-1 (Electroplate)






Ⅲ Max inlet pressure
A=60 psig
B=150 psig
C=350 psig
D=600 psig
E=1500 psig
F=2400 psig
G=3500 psig
N=Special pressure



V Pressure gauge
1=YES
2=NO
3=Electro connecting pressure gauge
4=Vacuumatic pressure gauge
5=Pressure sensor
6=Other


IV Outlet pressure Range
A=0 to 15 psig
B=0 to 24 psig
C=0 to 35 psig
D=0 to 60 psig
E=0 to 90 psig
F=0 to 150 psig
G=0 to 240 psig



VI Inlet connections
A=1/4"NPTF
B=G5/8R
C=W21.8-14R
D=W21.8-14L
E=G1/2R
F=CGA Series
G=Other







VII Outlet connections
A=1/4"NPTF
B=ø6 Hose fitting
C=ø8 Hose fitting
D=ø3 OD
E=ø6 OD
F=1/8" OD
G=1/4" OD
H=3/8" OD
I=Other

Ⅷ Mounting type
A=NO
B=Neck mounting
C=Back mounting
D=Other
